At a Glance

No.

Item

Description

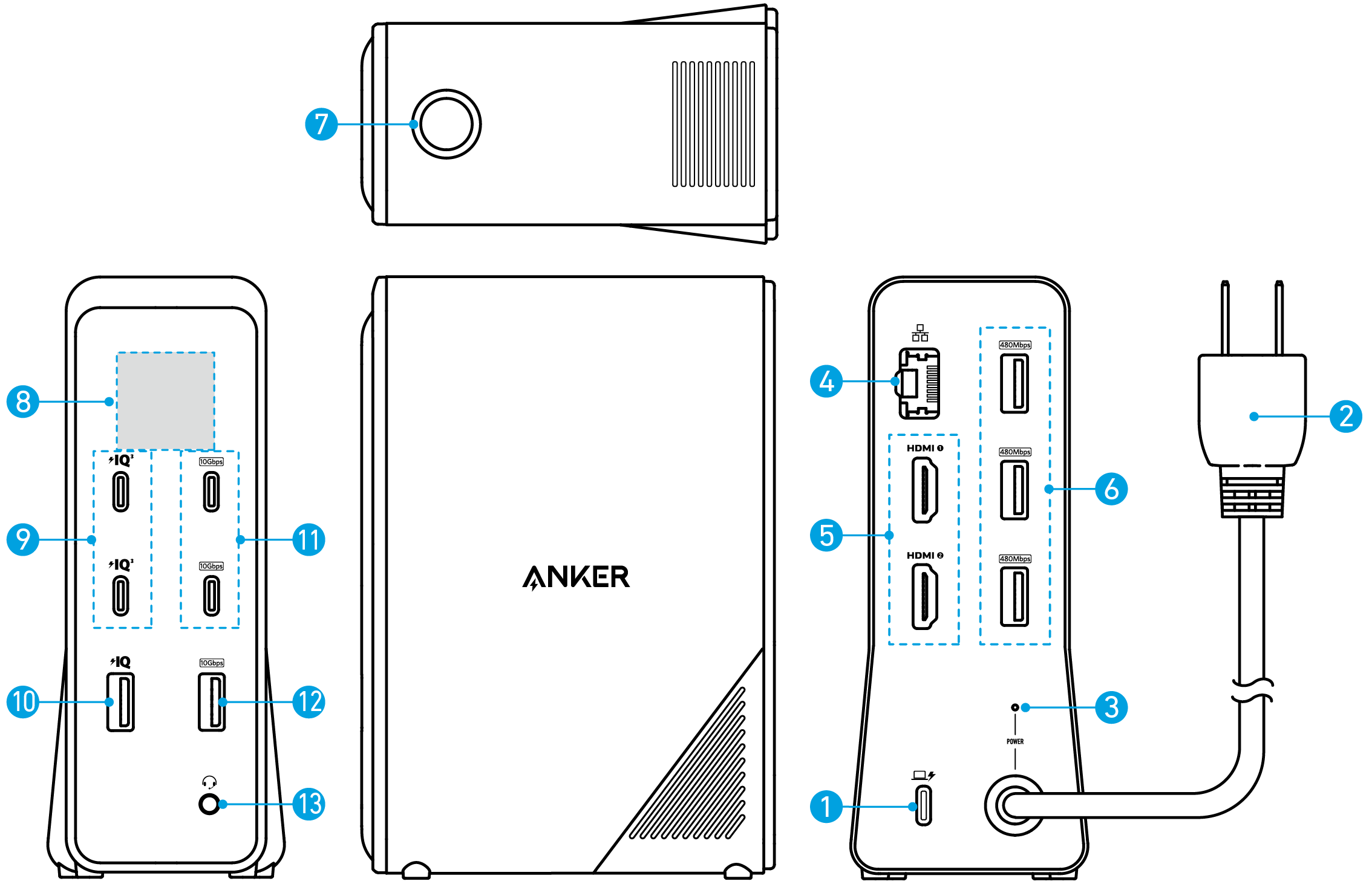

USB-C Upstream Port

· Connect to your laptop using the included USB-C cable.

· Provides charging for your laptop at up to 100W PD.

· Output: 5V3A / 9V3A / 15V3A / 20V5A (100W Max)

AC Power Plug

Connect to a power outlet.

Power plug varies by country or region.

Power Indicator

Turns white when the docking station is powered on.

Ethernet Port

Connect to a router or modem at 1 Gbps.

HDMI 2.0 Port x2

Connect two HDMI-enabled monitors for dual 4K HDMI display output.

· Supports up to 4K@60Hz output to a single display.

· Supports up to 4K@30Hz output to dual displays.

Actual display output performance will vary based on the host device specifications.

USB-A Data Transfer Port x3

480Mbps data transfer.

Power Button

· Press to power on or activate the LCD display.

· Press and hold for 4 seconds to power off.

· When powered on, press to toggle between two homepages (total USB output page and individual front-ports status page); press and hold for 2 seconds to turn off the LCD display.

LCD Display

Displays charging output power, data transfer status, firmware upgrade status, and warnings.

USB-C Charging Port x2

· Charge your phone or tablet at up to 100W with Power Delivery 3.0.

· Output: 5V3A / 9V3A / 15V3A / 20V5A (100W Max)

USB-A Charging Port

· Charge your phone, watch, or earphones at up to 12W.

· Output: 5V2.4A (12W Max)

USB-C 3.1 Gen 2 Port x2

10 Gbps data transfer.

USB 3.1 Gen 2 Port

10 Gbps data transfer.

Audio Jack

Connect to earphones or other devices with a 3.5 mm AUX connector.

· All USB ports do not support screen mirroring.

· When using multiple USB charging ports simultaneously, the maximum total USB output power is 160W.

· Place the charging docking station vertically on a flat surface.

Video Output Mode

A/B/C only means the different content displayed on the screen.

System

Laptop Screen

HDMI 1

HDMI 2

Windows OS

A

B

C

Mac OS

A

B

B

Screen Display Guide

Start-up Screen

When powered on, the Anker logo is displayed.

Home Screen

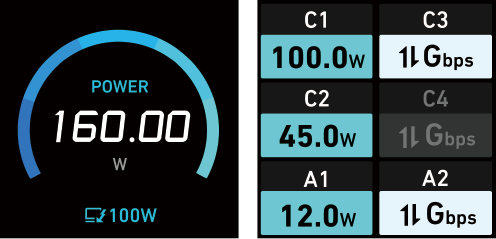

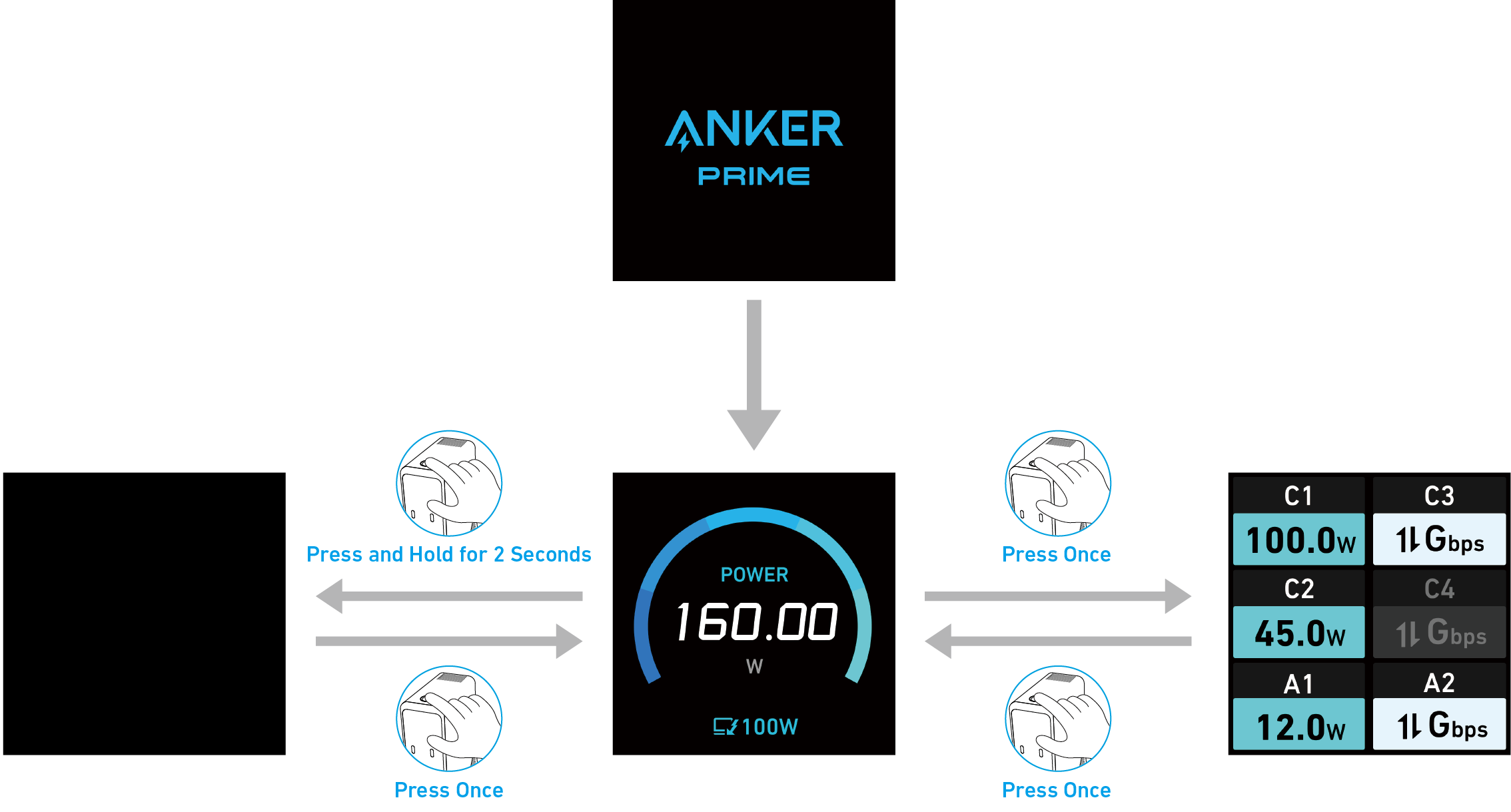

Press the power button to toggle between two home screens:

· Total output power is displayed.

· Charging power or data transfer status of individual USB-C or USB-A port is displayed.

Blank Screen

· Press the power button once to activate the home screen display.

· Press and hold the power button for 2 seconds to turn off the home screen display.

Upgrading Status

The upgrading status is displayed.

Overheating Warning

The temperature is over the optimal situation for a short period.

Anker Dock Manager

You can download the Anker Dock Manager desktop application by visiting:

https://www.anker.com/dockmanager-download

This application allows you to easily manage supported Anker hubs and docking stations, ensure device compatibility by updating firmware, and quickly troubleshoot problems using the integrated support and feedback features.

Specifications

Input

100V-240V~, 50-60Hz, 2.5A

Output

Total USB Output: 160W Max

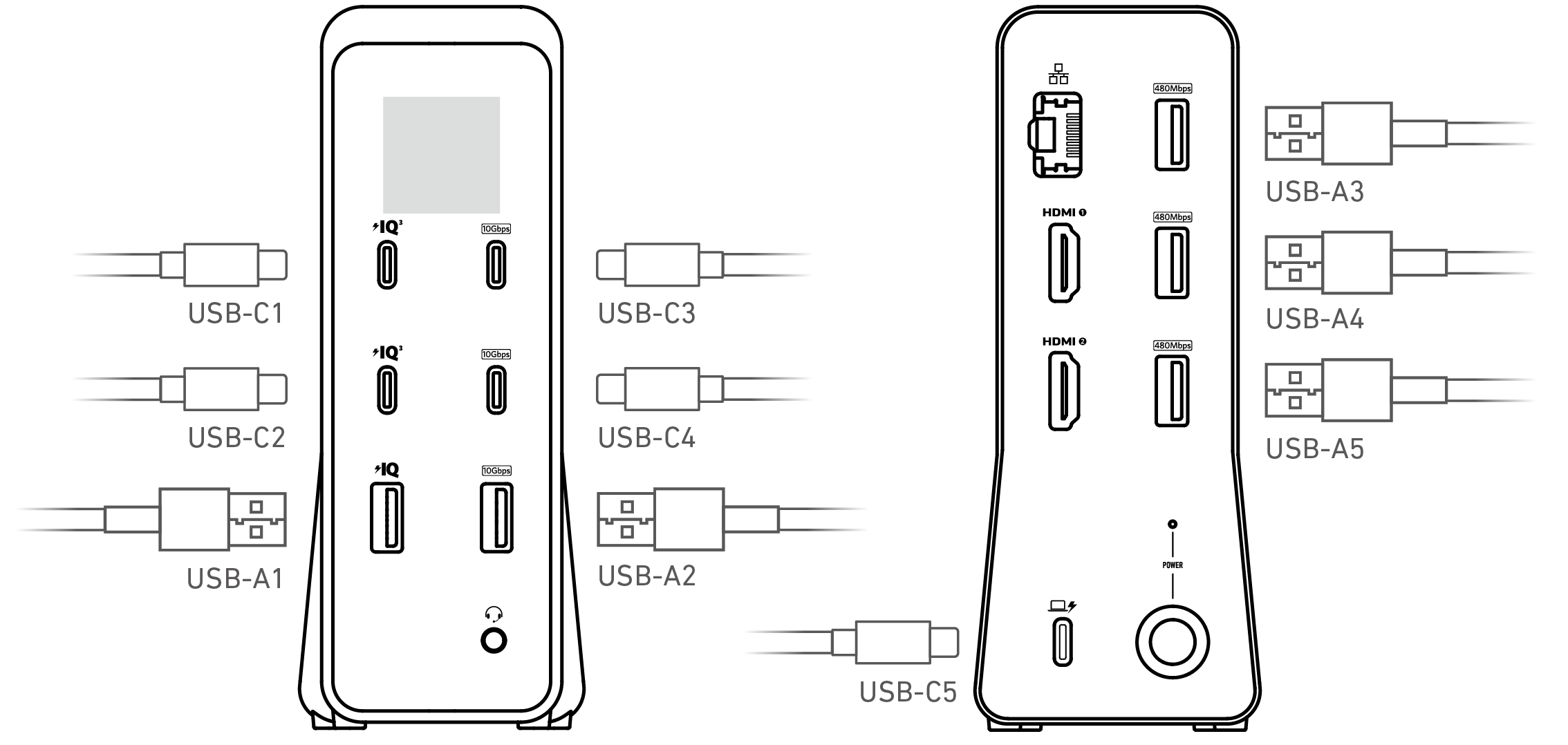

Use 1 Port Output:

USB-C5(Upstream Port)/USB-C1/USB-C2: 5V3A / 9V3A / 15V3A / 20V5A (100W Max)

USB-A1: 5V2.4A (12W Max)

Use 2 Port Output:

USB-C5+USB-C1/C2: 160W Max

USB-C1+USB-C2: 130W Max

USB-C1/C2/C5+USB-A1:112W Max

Use 3 Port Output:

USB-C5+USB-C1+USB-C2: 160W Max

USB-C5+USB-C1/C2+USB-A1: 157W Max

USB-C1+USB-C2+USB-A1:142W Max

Use 4 Port Output:

USB-C5+USB-C1+USB-C2+USB-A1:157W Max

Working Temperature

0°C~25°C ( 32°F~77°F)

Storage Temperature

-40°C~80°C (-40°F~117°F)

Data Transfer Speed

10 Gbps

Supported Systems

Windows 10/11, macOS 12 or later, Chrome OS

Note: The 'x' of SN Code: xxxxxxxxxxxxxxxx is a variable, see below table.

Variable 'x'

Range of variable

Content

Seventh

0-9 or A-F

Denotes the hardware version which is not effected on the safety compliance.

Eighth

8,9,A,B,C...

Denotes the year, 8 means 2018, 9 means 2019, A means 2020, B means 2021, C means 2022, and so on.

Ninth and tenth

01,02,03...

Denotes weeks, 01 means the first week in this year, 02 means the secondary week in this year, and so on.

Eleventh

1-7

Denotes date, 1 means Monday, 2 means Tuesday..., 7 means Sunday and so on.

The last five

00001-99999

Denotes serial No.
